Automatic Conveyor Mesh Belt Drying Dehydration Machine Food Continuous Tunnel Dehydrator Dryer Industrial Dehydrating Equipment

Description

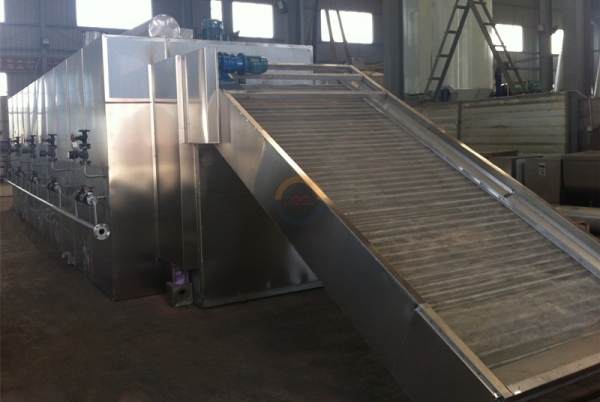

Automatic Conveyor Mesh Belt Drying Dehydration Machine Food Continuous Tunnel Dehydrator Dryer Industrial Dehydrating Equipment

Introduction:

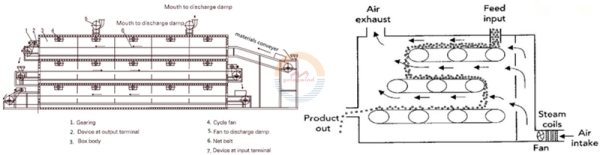

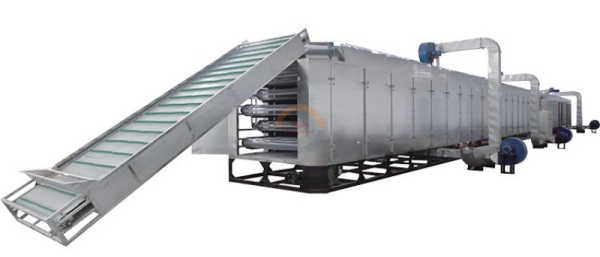

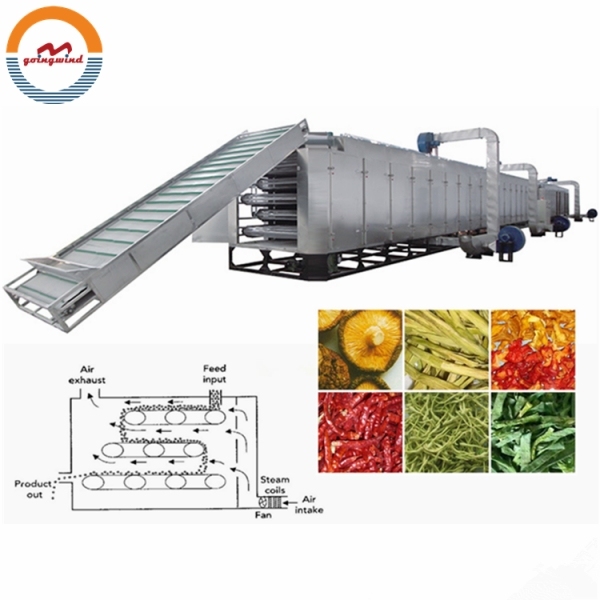

This machine is continuous type drying equipment. The machine is used for drying the slice, strip and granule state materials with good ventilation. It has stronger pertinency, practicability and high efficiency of energy. It's widely used for dehydrating the materials with high water contents and low drying temperature, such as fruits, vegetables, herbal medicine, particle feed, monosodium glutamate, organic pigment, compound rubber, tacryl fibre, plastic product, wooden product, electronic component, etc. We can design it into 1, 3 or 5 layers structure according to your product and requirements.

Main Features:

1. The mesh belt dryer is a extension and improvement of ordinary hot air circulation drying oven, to achieve automatic continuous production, save a lot of manpower and cost.

2. High drying rate and evaporation intensity, good product quality, compact structure, simple operation and maintenance, wide applicability.

3. Hot air can be recycled, the energy is greatly saved. Unique air dividing device makes hot air distribute uniformly which is can guarantee products’ quality.

Main Model List:

MODEL	CAPACITY	TEMPERATURE	POWER	VOLTAGE	DIMENSIONS
GWB-1.6-11	100kg/h	50-120C adjustable	6kw	220/380V	1200018801560mm
GWB3-2-9	300kg/h	50-120C adjustable	25kw	220/380V	1050022002180mm
GWB5-2-9	500kg/h	50-120C adjustable	27kw	220/380V	1050023003000mm
GWB5-2-18	1000kg/h	50-120C adjustable	30kw	220/380V	2000026302810mm
GWB5-2-38	2000kg/h	50-120C adjustable	35kw	220/380V	3800026302810mm
GWB5-2-50	3000kg/h	50-120C adjustable	39kw	220/380V	5000026302810mm

About Us

SHANGHAI GOINGWIND MACHINERY CO.,LTD. was founded in Shanghai, it has expanded in Jiangsu, Zhejiang and other places, with factory area of over 15000M2, working staff of more than 150 persons. We have more than 20 years of experience in the R&D and production of food equipment, our products are sold to more than 50 countries, such as United States, Hungary, South Korea, Pakistan, United Arab Emirates, Indonesia, Philippines, Australia, Myanmar, Thailand, Peru, Venezuela, Mongolia, Saudi Arabia, Malaysia, Canada, Trinidad and Tobago, Egypt, Tanzania, Georgia, Kenya, Congo, Angola, Nigeria, Chile, etc.

Our company specializes in the development and manufacturing of Dairy & Beverage Equipment, Fruit & Vegetable Processing Equipment, Essential Oils Distiller, and related Filling & Packaging Equipment. Products are widely used in food and other industries, including dairy products (milk, yogurt, cheese, ice cream, condensed milk, milk powder, etc.), fruit juices, plant-based milks, tomato paste, jams, dehydrated fruits & vegetables, powder & flour products, essential oils, etc.

We are is a professional food machinery manufacturer, we are committed to providing customized turnkey projects for the food industry to our customers. We warmly welcome your visit and sincerely look forward to cooperating with you!

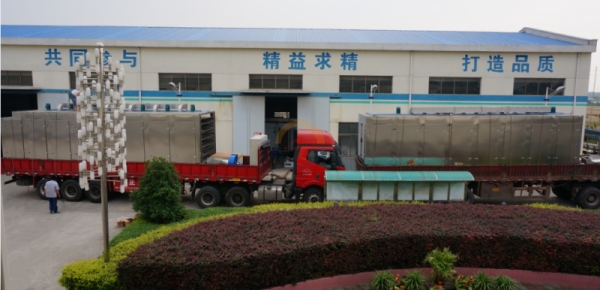

Company Environment
